NissanVanette SerenaKVC2301.1997 - 01.1998Chassis and transmission327 - speedometer pinion (unit)

327 - speedometer pinion (unit) for Nissan Vanette Serena KVC23



Frame / SeriesKVC23 / C23 body W (wagon )engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ)drive 2WD (two-wheel drive )
Manufacture period01.1997 - 01.1998grade FXtransmission AT (automatic transmission )

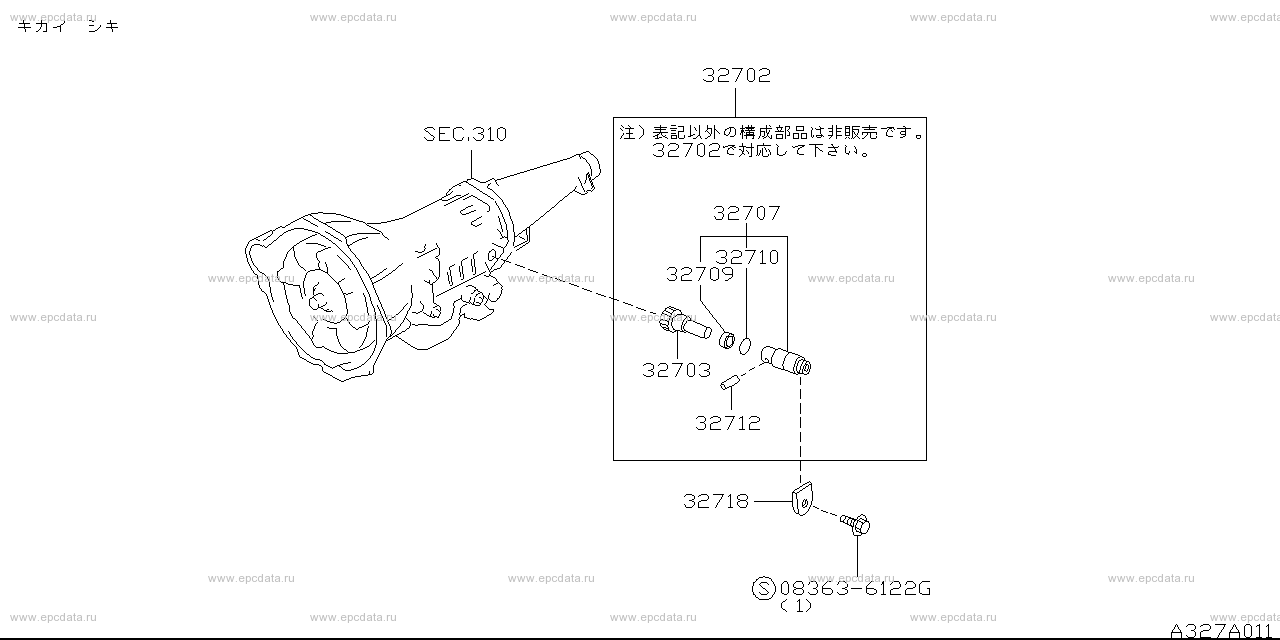

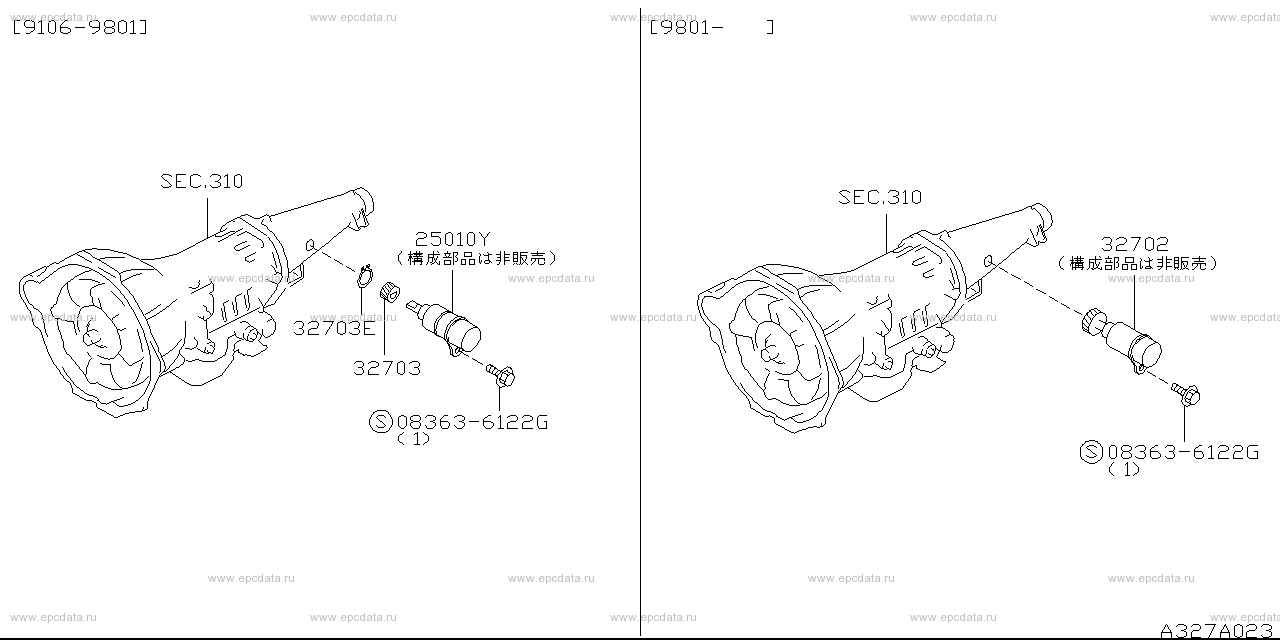

Scheme 327A_001 Scheme 327A_002
Applies for modelsManufacture periodSpec
2WD.(SR20DE+CD20T).AT +(GA16DE+CD20).AT05.1994 - 01.1997機械式
2WD.(SR20DE+CD20ET).AT +(GA16DE+CD20).AT01.1997 - 01.1998機械式
2WD.(SR20DE+CD20ET).AT +(GA16DE+CD20).AT01.1998 - ...機械式

Open full screen pictureOpen full screen picture
Up to the top

083636122G
32702 - pinion assembly, speedometer
32703 - pinion, speedometer
32707 - sleeve, speedometer pinion
32709 - seal, oil speedometer pinion
32710 - seal,O ring speedometer pinion
32712 - pin, retainer speedometer pinion
32718 - plate, lock speedometer pinion
Applies for modelsManufacture periodSpec
2WD.(SR20DE+CD20T).AT +(GA16DE+CD20).AT05.1994 - 01.1997電気式
2WD.(SR20DE+CD20ET).AT +(GA16DE+CD20).AT01.1997 - 01.1998電気式
2WD.(SR20DE+CD20ET).AT +(GA16DE+CD20).AT01.1998 - ...電気式

Open full screen pictureOpen full screen picture
Up to the top

083636122G
25010Y - sensor assembly, speed meter
32702 - pinion assembly, speedometer
32703 - pinion, speedometer
32703E - ring, lock speedometer pinion

Nissan Vanette Serena genuine parts
